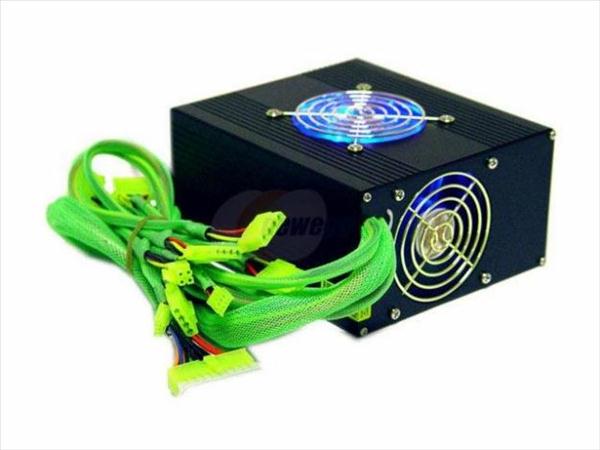

Brand APEVIA Model ATX-AS520W-BK Spec Type ATX Maximum Power 520W Fans 3 PFC No Main Connector 20 4Pin 12V Rails Single PCI-Express Connector No SATA Power Connector 2 SLI No Modular No Power Good Signal 100-500ms Hold-up Time >10ms at full load Efficiency >70% under max range load Over Voltage Protection Yes Overload Protection Yes Input Voltage 115 / 230 V Input Frequency Range 50/60 Hz Input Current 10A @ 115V, 5A @ 230V Output 3.3V@30A, 5V@32A, 12V@35A, [email protected], [email protected], 5VSB@2A MTBF 100,000 hours at full load/25°C Approvals CB IEC 950/ TUV EN 60950/ UL 1950/ CSA 950 Features Connectors 1 x Main connector (20 4Pin) 1 x 12V (P4) 8 x Peripheral 2 x Floppy Features Fan speed controller, full cable UV green Sleeves, 2.0mm aluminum casting; 1x 20/24pin Main Power, 1x ATX12V 4pin, 8x Peripheral, 2x Floppy,
