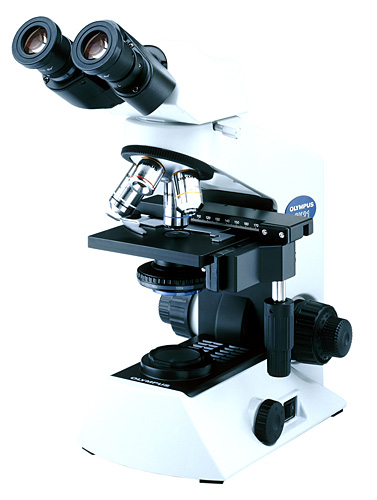

Model CX21LED CX21 Optical System UIS2 (Universal Infinity System) optical system Illumination System Built-in transmitted illumination system, 0.5WLED Built-in transmitted illumination system, 6V20W halogen bulb Focusing Stage height movement (coarse monement stroke: 20mm) Fine focus graduation: 2.5µm Revolving Nosepiece Fixed quadruple nosepiece Stage Wire movement mechanical fixed stage: 120 x 132mm Traveling range: 76mm (X) x 30mm (Y) Single specimen holder Observation Tube 30°inclined binocular tube Interpupillary distance adjustment range: 48-75mm Condenser Abbe type with aperture iris diaphragm N.A.:1.25 Objectives Plan Achromatic objectives (anti-fungus) 4x N.A.:0.10 W.D.:18.5mm 10x N.A.:0.25 W.D.:10.6mm 40x N.A.:0.65 W.D.:0.6mm 100xOil N.A.:1.25 W.D.:0.13mm (CX21LEDFS1/CX21FS1 only) Eyepiece (10x) Field Number (F.N.): 18(anti-fungus) Optical Accessories Mirror unit, 15x eyepiece (F.N. 12, anti-fungus), wooden storage bov, filar micrometer, wire pointer, filter holder, darkfield stop, cord rest (CX21 only) Weight Approx. 6Kg Rated Voltage/Electric Current AC 100-240V 50/60Hz 0.4A AC 100-120/220-240V 50/60Hz 0.42/0.25A Power Consumption 1.7W 18W CX21 dimensions (unit: mm) It pin packed. For more Details kindly visit the website and here is the link: http://microscope.olympus-global.com/en/ga/product/cx21/ Serious buyers Contact us: Zayad(0345-5193104), Ijaaz (0321-7801417)
